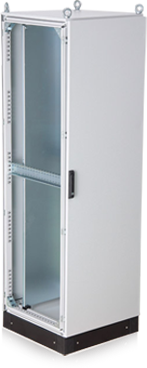

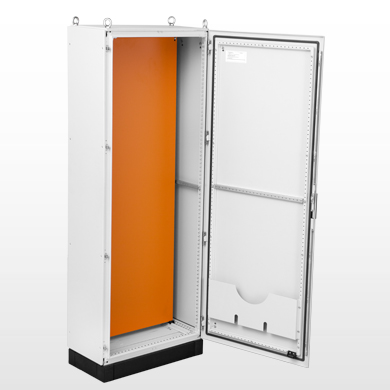

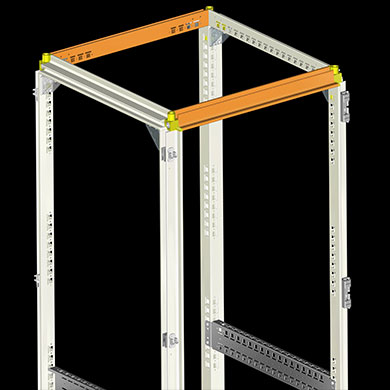

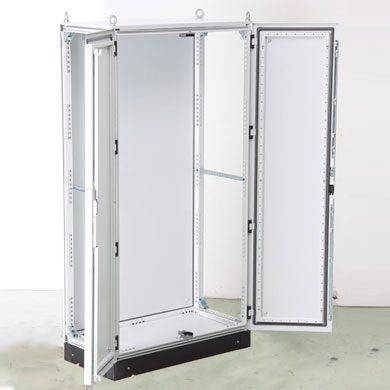

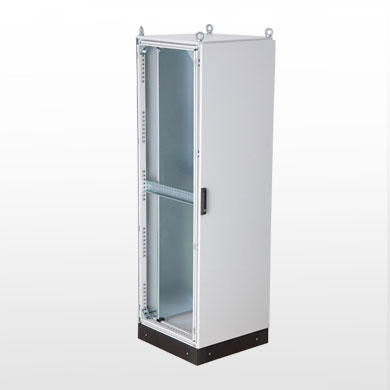

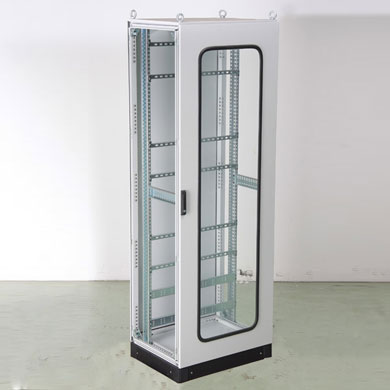

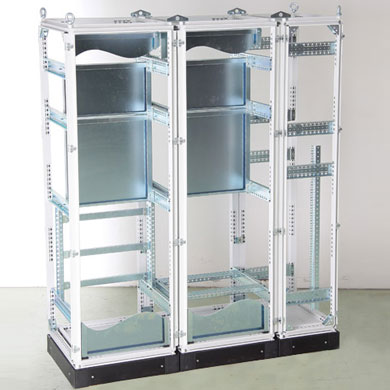

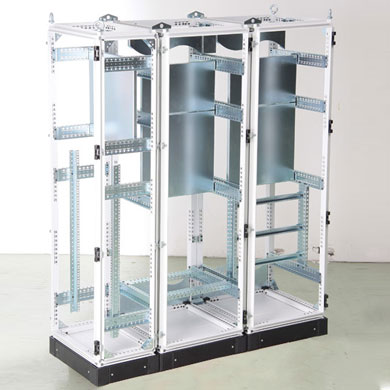

indoor electrical enclosure with IP55 (NEMA 12) protection grade, for low-voltage electrical installation. The FSi has a tubular (closed) frame which is innovative, shaped through continuous forming in carbon steel SAE 1008 of 1.5 mm, and geometrical configuration with 11 folds that make it extremely rigid against torsion. Due to its innovative form, the FSi also has high tensile strength and relatively low cost.
The surface treatment is made by an automatic pre-treatment and cathodic electrophoretic painting, a technology known as KTL or E-COAT, renowned in anticorrosive protection around the world and widely used in the auto and spare parts industries.
Sealing in expanded polyurethane with FIPFG technology with excellent resistance against aging without using glues and splicing.
The FSi model can be purchased in the semi-assembled version should the client wish to save in purchase, shipping and storage. Also, the client may acquire the air conditioned cabinet from factory with air conditioner or heat exchanger.

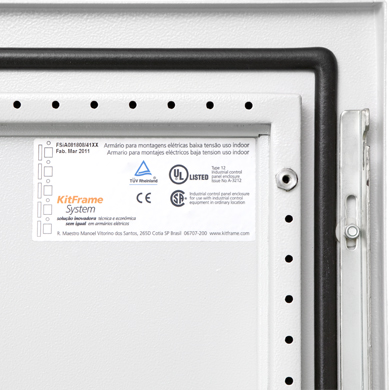

Product certified according to NBR IEC 62208-2003, UL 508, UL 50, UL 50E, CSA C22.2 No. 14-05, 94.1-07 and 94.2-07.
All features of the FSi electrical enclosure combine high quality, cutting edge technology, flexibility and low cost in a single product.
